Winora Sinus FS: Full suspension and low step-through for everyday use and touring

July 18, 2025 by Michael Faiß

Product news: With the Sinus FS for the 2025 model year, Winora presents an e-bike concept that combines two previously separate worlds: the comfort and accessibility of a low-step frame with the technology and riding characteristics of a full-suspension e-bike. Equipped with the powerful Bosch Performance Line CX motor, 800 Wh battery, and sophisticated details, the bike is aimed at a target group seeking maximum comfort and high technical standards for everyday use and on tours. The Winora Sinus FS will be available in two equipment variants: the Sinus FS X12 with derailleur gears and the top-of-the-line Sinus FS R5f Pro with belt drive and Bosch ABS.

The concept: A full-suspension frame as a basis

At the heart of the new Winora Sinus FS is a newly developed aluminum frame designed for maximum comfort. The low step-through design, with a height of just 39 cm and a width of 12 cm, makes getting on and off particularly easy. This is supported by a factory-installed seat post that can be lowered from the handlebars.

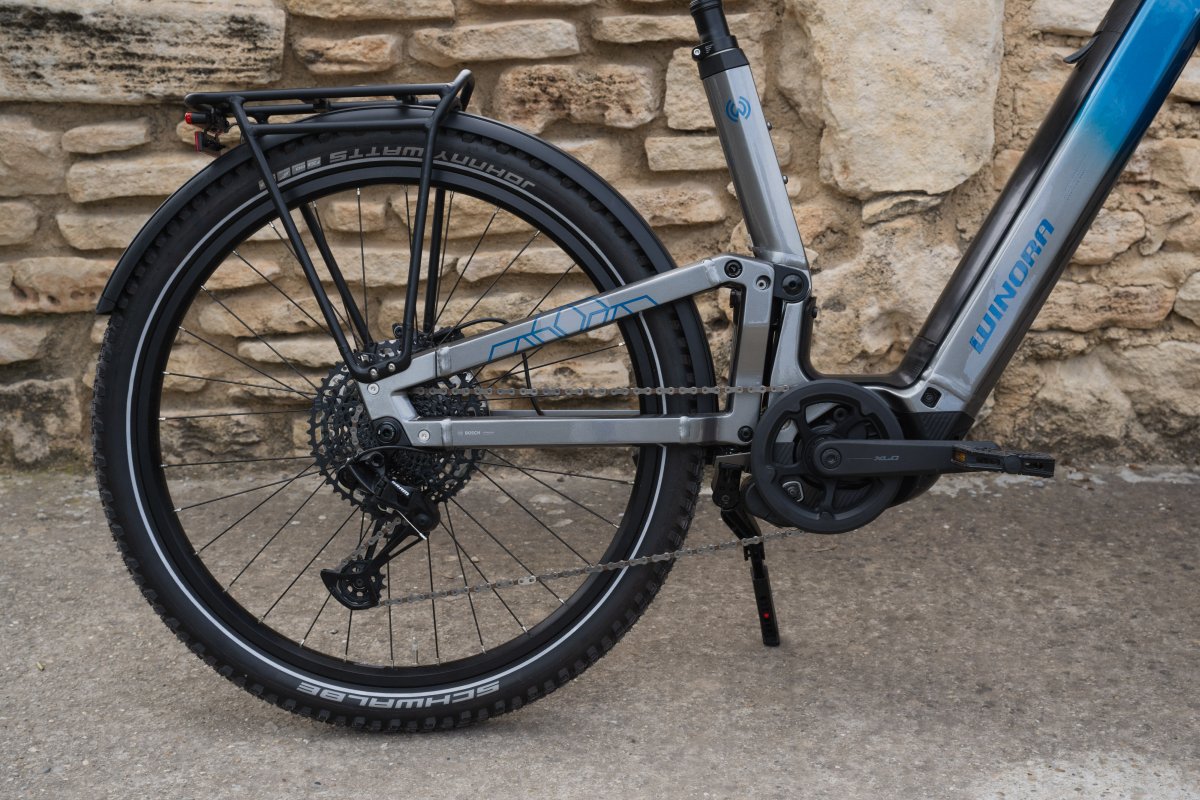

The key innovation, however, is the integration of full suspension. While an SR Suntour suspension fork offers 100 mm of travel at the front, the rear offers 80 mm. Combined with the large-volume 27,5-inch Schwalbe tires (60 mm wide), this setup promises a high level of damping comfort, whether on cobblestones in the city or on unpaved bike paths on a tour. The geometry, with a 67-degree head angle and a chainstays length of 485 mm, underscores the focus on stable and compliant handling.

Drive and components in detail

Heart of the bike: Bosch CX with 800 Wh battery

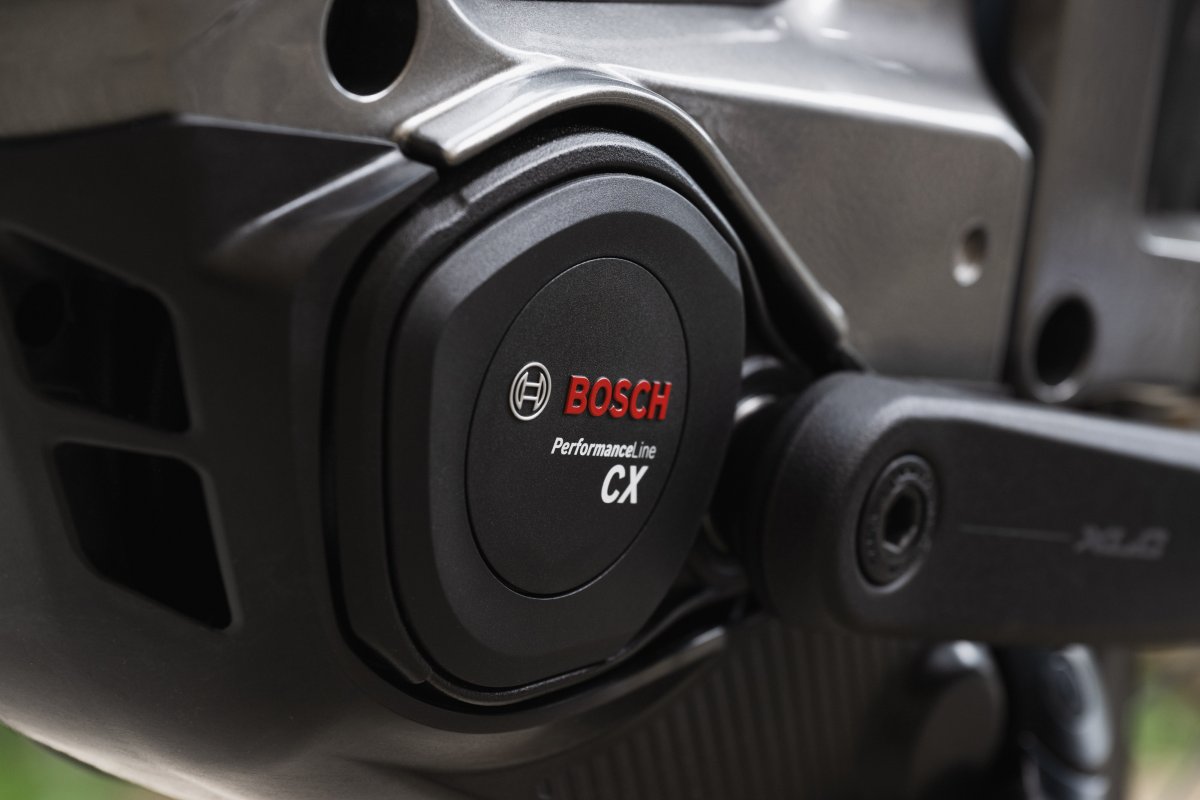

Both models are powered by the Bosch Performance Line CX motor, which, with 85 Nm of torque, provides sufficient power even for steep climbs. Thanks to the generous 800 Wh battery, even longer tours with high levels of assistance should be no problem. Winora has integrated the battery horizontally into the down tube; it is removed from the side. The charging socket is conveniently located at the top of the frame. The system is controlled via the LED remote, combined with a Kiox 300 display on the X12 model or the larger Kiox 500 on the R5f Pro.



Belt or chain: Two drive options

Winora offers the Sinus FS with two different drivetrain concepts to suit different user preferences. This is made possible by a system with interchangeable dropouts on the frame.

The top-of-the-line Sinus FS R5f Pro, on the other hand, features a low-maintenance combination of a Gates Carbon Drive CDX belt and a Shimano Nexus 5-speed hub gear. This configuration is particularly durable and clean, as it requires no lubrication.




The Sinus FS X12 model is equipped with a Sram SX Eagle 12-speed derailleur. This offers a wide gear range and is aimed at riders who prefer a classic shifting system.

Chassis and safety

Focus on safety: ABS and powerful brakes

A key feature of the Sinus FS R5f Pro is the integrated Bosch E-Bike ABS. This system is designed to increase control during braking maneuvers on difficult surfaces and prevent the front wheel from locking up. The bike is equipped with a Magura MT-C ABS brake system. The more affordable X12 model decelerates with a Shimano Deore BR-MT420 brake system. Both versions feature reliable four-piston brakes with 203 mm discs on the front and rear wheels.



A comprehensive lighting system from Litemove and Spanninga ensures good visibility. The top-of-the-line R5f Pro model features a headlight with a high beam of up to 210 lux. All models are equipped with a rear light with an integrated brake light function.

Practical detailed solutions and equipment

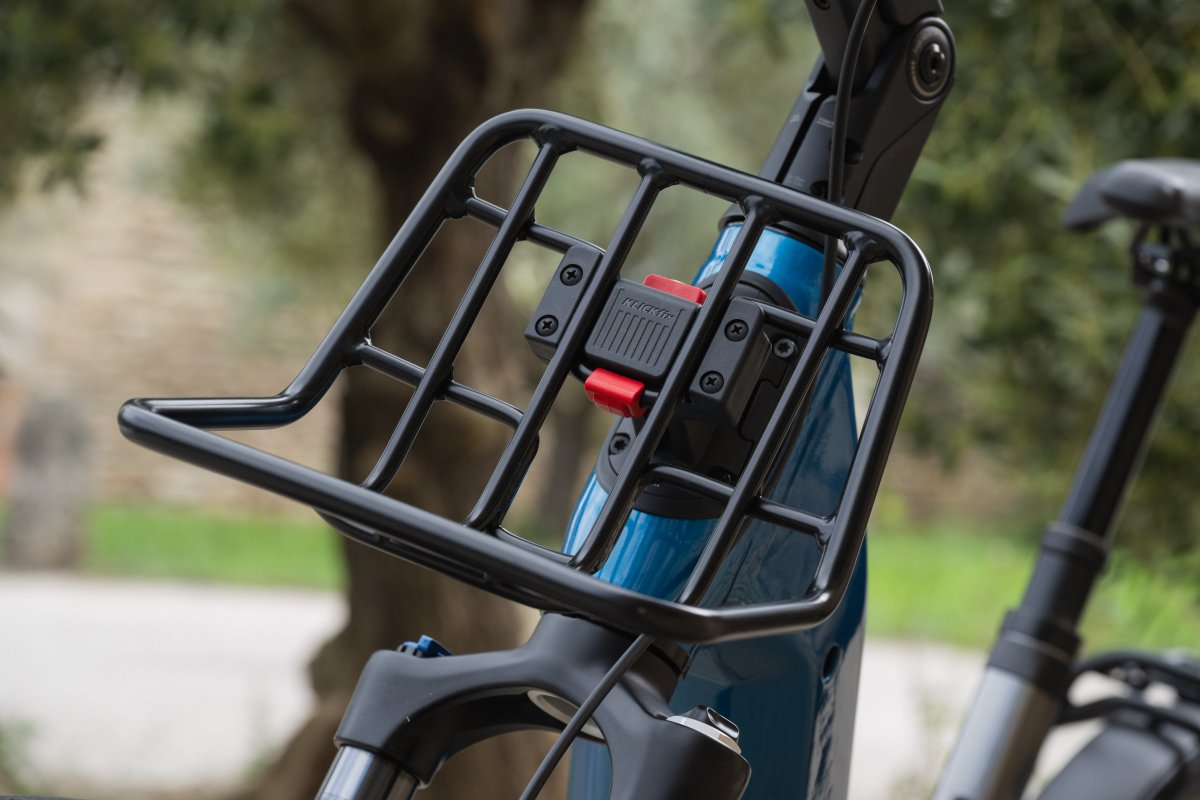

Beyond the core components, Winora has equipped the Sinus FS with a number of details suitable for everyday use. These include a Massload system rear rack, which can carry up to 15 kg of load according to the MIK standard. Additionally, a front rack with KlickFix mount is installed, which is approved for a load of up to 3 kg.



The headset features an integrated steering stop (Block-Lock) that prevents the handlebars from tipping over while stationary. The maximum permissible weight for both models is a high 150 kg.

The Sinus FS X12 MY25 is priced at 5.499 euros, while the Sinus FS R5f Pro MY25 is priced at 5.999 Euro will be available.
